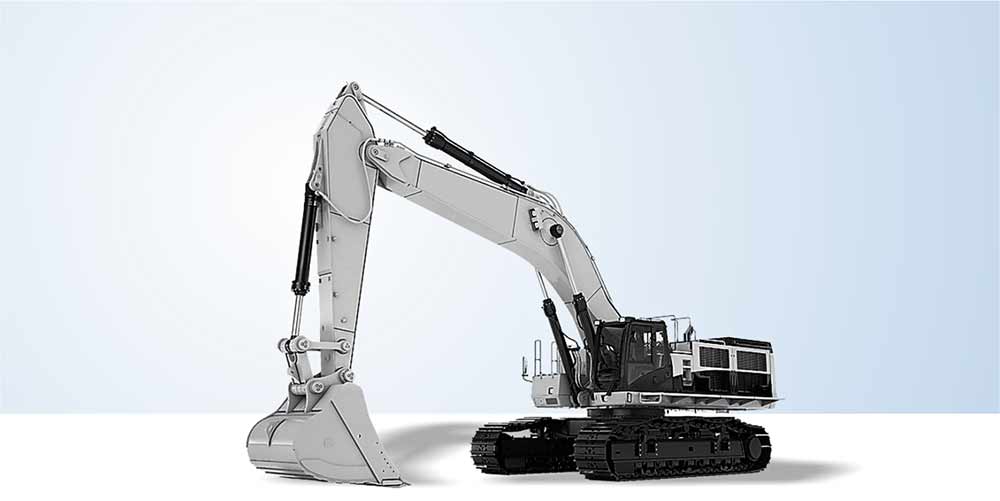

Medium/Large Excavator - Hengli

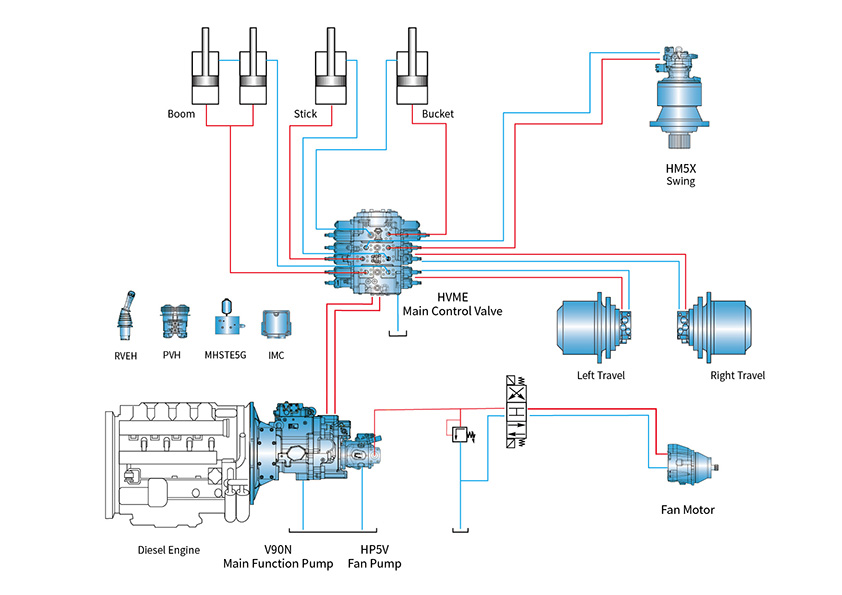

Function		Model
		13.5~15t	20~36t	36~90t
Function System	Main Function Pump	V90N75DT	V90N130DT/180DT	V90N180DT/280DT V90N212/230/252DP
	Main Control Valve	HVME180B	HVME270B	HVME400/700B
	Explosion-proof Valves	FBRC15F/16F	HHRB25P/20P	HHRB25P/32P/36P
	Swing Motor	HM5X80	HM5X130/180	HM5X180/250
	Cylinder	A complete set of hydraulic cylinders such as boom, stick, bucket, etc.
Auxiliary System	Auxiliary Valves	PPRV-05/ SDCV-05
	Pilot Oil Source	MHSTE5G /MFB	MFB/MFD
	Pilot Joysticks	YDVH1/RVEH1
	Pilot Foot Pedal	PVH1/PVH3
	Fan Pump	HP5V
	Fan Motor	HM3V
Control System	Mobile Machinery Controller	HL-C

Option for positive flow control system and negative flow control system

— Main Function Pump:

Double pump, compact structure design, easy to control, can be directly installed with flange, saving space, and the complete set of components can also save debugging time; according to the characteristics of different machine models, supply different types of systems; the products are all lightweight design, making the machine more compact;

— Main Control Valve:

The main control valve integrates a swing priority valve, a straight travel valve, a flow regeneration valve, etc., and the valve body is also designed as mono block type, which reduces the pressure loss of the flow passage and realizes more energy-saving;

— Swing:

Built-in mechanical brake, relief valve, charge valve, anti-reverse valve; two-way rotation, the mounting flange can be directly connected to the gear ring of the reducer; based on mature technology, conducts lightweight, compact and improvement and increase the output power.
