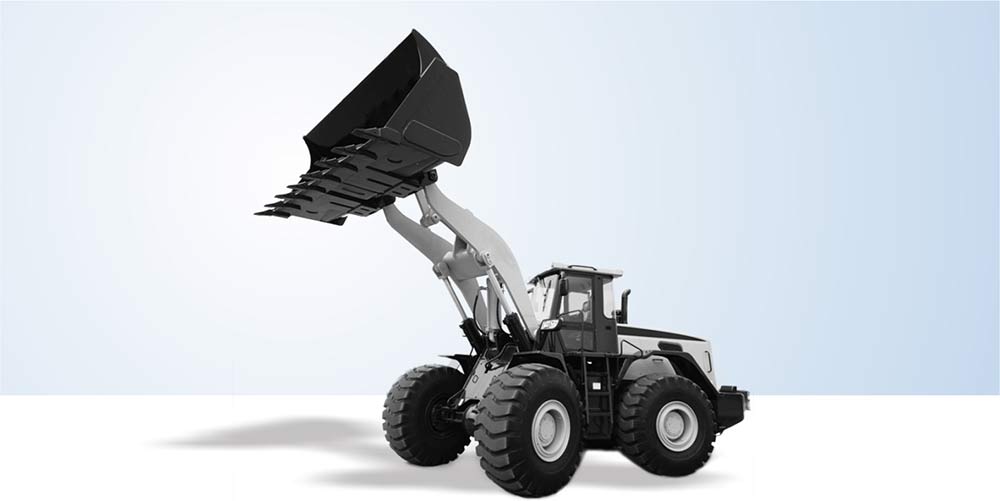

Loader - Hengli

Function		Model
		5~6t	≥7t

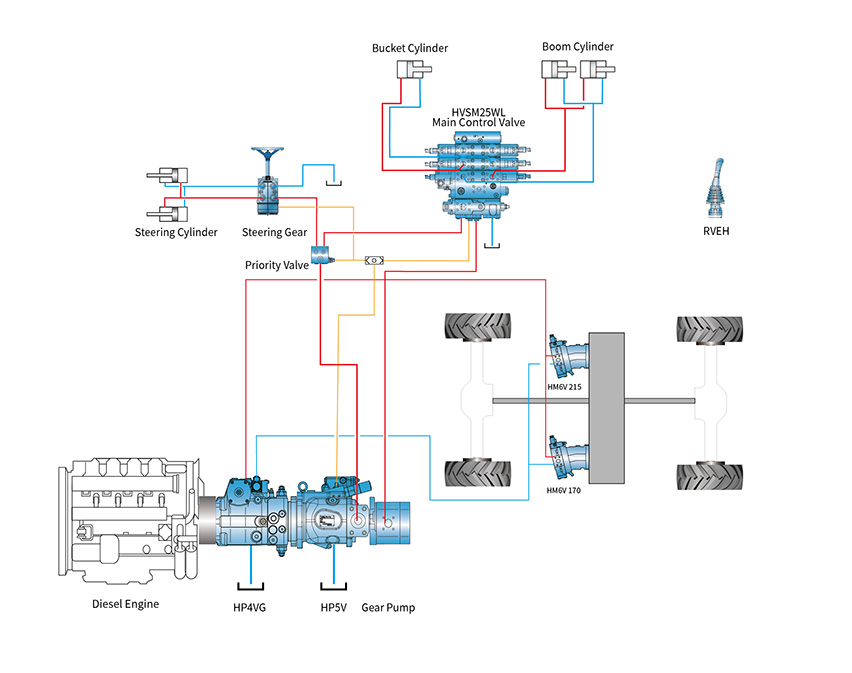

Steering/Function System	Steering Pump	HP5V85	HP5V105/HP3V140
	Working Pump:	HP5V60/76	HP5V85/105
	Main Control ValveMain Control Valve	HVSM25WL

— Steering Pump：

Compared with the traditional gear pump, the use of a variable piston pump can effectively reduce the energy consumption of the system; and it can provide pressure oil to the Function system when it is not turning, effectively improving the work efficiency;

— Working Pump:

It is mostly used for the dual-variable system of the outlet. The piston pump has a compact structure, and it is convenient for installation in a small space, which can increase the system pressure to achieve energy saving and efficiency;

— Working Main Valve:

Integrated boom damping eliminates travel shock, with pressure post compensated.
